详情介绍
TDTG系列斗式提升机
TDTG Bucket Elevator
产品优势
PRODUCT ADVANTAGE
1、结构紧凑，横断面外形尺寸小，可显著节省占地面积。
2、机头:头轮覆胶工艺，增大磨擦系数，提高传动效率;配有止逆装置， 避免因断电引起的堵机问题;有直联传动和链传动形式供选；
3、 筒体:采用边咬合工艺、强度好，密封性佳;增设亚衡管，平衡机体 两筒体间压力平衡。
4、机尾:新型轴端密封结构，防止粉尘外泄;采用分体式轴承座结构，保 障设备使用可靠性;可根据用户要求选配速度检测及跑偏报警装置， 确保安全正常生产。
5、适用于粉状、颗粒状及小块状物料的连续垂直提升，可广泛应用 于各种规模的饲料厂、粮油、食品、化工、建材以及粮库、港口 码头的散装物料的提升。
1. Compact structure, small cross-section size, can significantly save the area.
2. Machine head: glue-covering process of head wheel, increase friction coefficient, improve transmission efficiency; equipped with anti-reversing device, avoid the problem of blocking up machine caused by power cut; there are direct transmission and chain transmission forms to choose;
3. Cylinder body: Adopt Edge Biting Technology, good strength, good Sealing; add sub-balance pipe, balance body, pressure balance between the two cylinders.
4. Machine Tail: New Type Shaft end seal structure to prevent dust leakage; adopt split bearing housing structure to ensure the reliability of the equipment; can select speed detection and deviation alarm device according to User's requirements to ensure safe and normal production.
5. It is suitable for the continuous vertical lifting of powder, granule and small block materials, and can be widely used in the lifting of bulk materials in all sizes of feed mills, grain and oil, food, chemical industry, building materials, grain depots, ports and wharves.

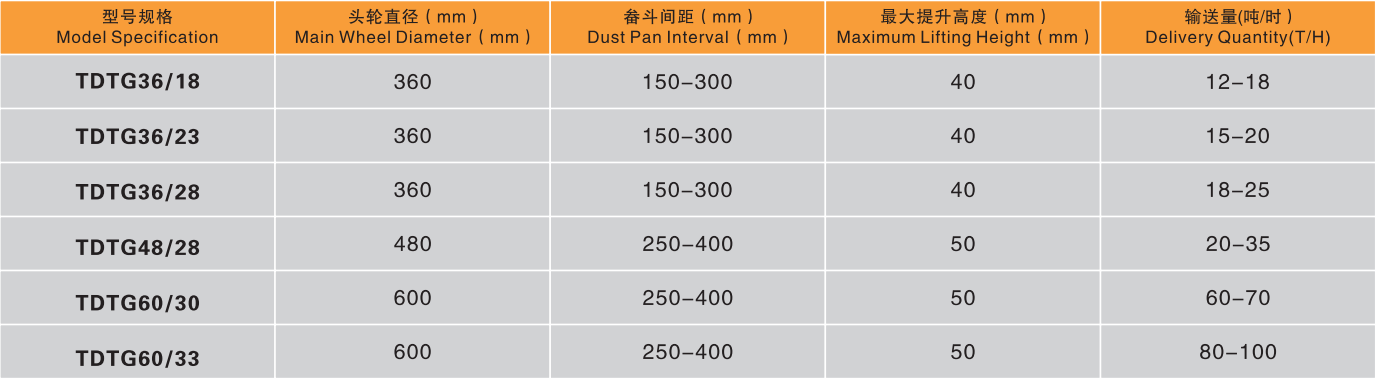

技术参数及型号PARAMETERSAND MODELS
-
