SKLN系列逆流式冷却器
SKLN Series Cooler
产品优势
PRODUCT ADVANTAGE
1、利用逆流冷却原理对高温、高湿的颗粒进行冷却,避免了冷风与热料直接 接触而产生骤冷现象,因而能防止颗粒产生表面开裂。
2、新八角型冷却箱体设计,无冷却死角。
3、采用闭风器进料,进风面积大,冷却效果显著。
4、 采用滑阀往复式排料机构,运动平稳、可靠,残留小。
5、能耗低、操作简便。
6、冷却后成品温度不高于室温+3°C〜5°C,适用于颗粒物料的冷却。
7、 也有翻板式排料机构的却器可供选择,采用液压驱动的排料机构,多用于膨化、 膨胀料的冷却。
1. The counter-current cooling principle is used to cool the high-temperature and high-humidity particles, which avoids the sudden cooling phenomenon caused by the direct contact between cold air and hot materials, thus preventing the surface cracking of particles.
2. the latest octagonal cooling box design, no cooling dead angle.
3. Adopting the air-closing device to feed, the air-feeding area is large, and the cooling effect is remarkable.
4. Adopt the slide valve reciprocating discharging mechanism, the movement is stable, reliable, the residue is small.
5. Low Energy consumption, easy operation.
6. The temperature of the finished product after cooling is not higher than room temperature + 3 °C - 5 °C, which is suitable for the cooling of granular materials.
7. There is also a switch-type discharge device to choose from, using hydraulic-driven discharge mechanism, mostly used for expansion, expansion of material cooling.

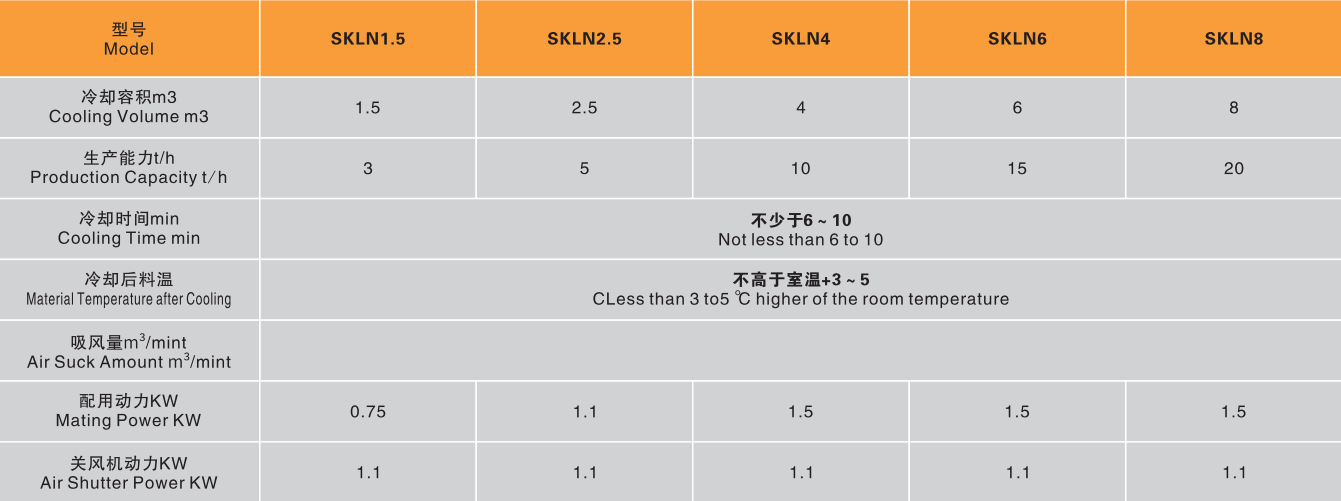

技术参数及型号PARAMETERSAND MODELS
-
